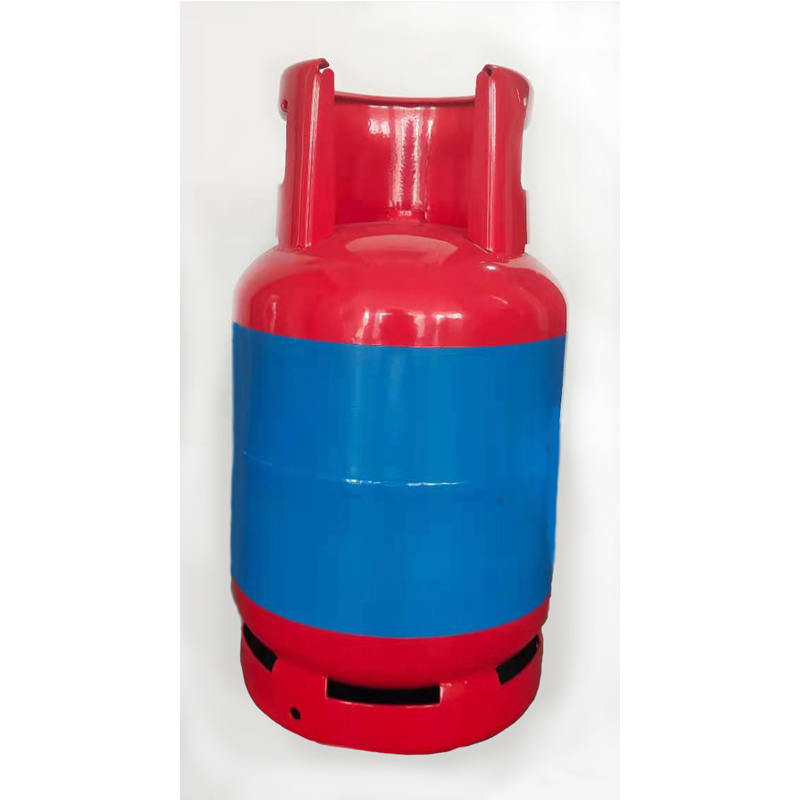

HR40064
Sort： LPG Cylinder
Code： HR40064
Specification： LPG-45
Material： Hot rolled steel coil HP295
Description： Produced, coated or painted as Korean standard requirements
Code： HR40064
Specification： LPG-45
Material： Hot rolled steel coil HP295
Description： Produced, coated or painted as Korean standard requirements
Product Description
We can produce all serious LPG cylinders according to Korean standard, for home used.
Huanri cylinder is a well-known trademark in China, and also very famous abroad, get the general recognition and praise of customers.
Technical Parameters
| TYPE | LPG-45 |
| FILLED WT (KG) | ≤45 |
| EMPTY WT(KG) | 30.7 |
| VOLUME (L) | 108.4 |
| H (MM) | 1235 |
| O.D (MM) | 373 |
| I.D (MM) | 368 |
| G.D (MM) | 190 |
| B.D (MM) | 373 |
| W. PRESSURE (MPa) | 16.37Bar |
| T. PRESSURE (MPa) | 25.2Bar |
| PART NO. OF VALVE | YSF-RA-1F |
| STANDARD ADOPTED | JS25 |
